MS Threaded Rods in Kenya | Sanvil Industries Ltd

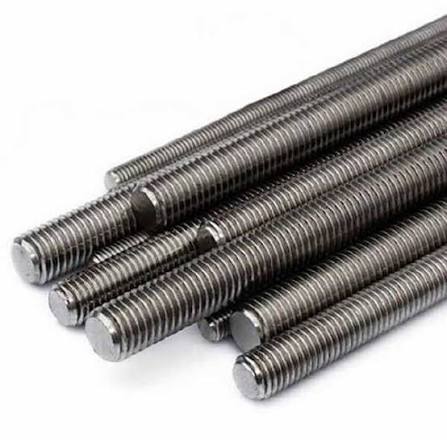

MS Threaded Rods, also known as Mild Steel Threaded Rods, MS Thread Bars, All-Thread Rods, or Studding, are long mild-steel fasteners with continuous external threads along all or most of their length. They provide strong, adjustable fastening and suspension solutions for HVAC installations, pipe supports, construction, electrical works, mechanical systems, steel fabrication, machinery installation, and general industrial maintenance.

At Sanvil Industries Ltd, we stock quality MS Threaded Rods in Kenya in multiple diameters, lengths, finishes, and strength classes. Options can include plain mild steel, zinc-plated, and galvanized threaded rods, depending on project requirements and availability. We supply contractors, fabricators, HVAC installers, factories, institutions, and industrial customers across Kenya, Uganda, and Tanzania at competitive wholesale and bulk prices.

Product Description – MS Threaded Rods

An MS threaded rod is a cylindrical mild steel bar with an external screw thread that accepts compatible nuts, washers, coupling nuts, anchors, brackets, channels, and clamps.

Unlike a standard bolt, which normally has a head, a threaded rod offers adjustment across most or all of its length. This makes it particularly practical for installations where the final support height or fastening position requires adjustment.

Common uses include:

• HVAC duct suspension
• Pipe supports
• Cable tray supports
• Ceiling suspension
• Steel fabrication
• Machinery anchoring
• Mechanical installations
• Electrical supports
• Structural brackets
• Industrial maintenance

Suitable rods can also be cut to the necessary length for custom installations.

Common MS Threaded Rods Sizes

Common Lengths

MS threaded bars commonly come in:

• 1 metre
• 2 metres
• 3 metres

Other lengths can suit particular project requirements.

For quotations, a clear specification is:

Diameter × Length × Finish × Quantity

For example:

M10 × 3 m – Zinc Plated – 100 pcs

Applications of MS Threaded Rods

1. HVAC Duct Suspension

MS threaded bars combine with channels, brackets, anchors, nuts, and washers to suspend ventilation and air-conditioning ductwork.

2. Pipe Supports

Plumbing and mechanical contractors use suitable rods with pipe clamps and support channels for water, HVAC, drainage, and process piping.

3. Cable Tray Supports

Electrical contractors can use threaded bars as part of suitable cable tray and containment support systems.

4. Construction

MS rods provide adjustable fastening, suspension, clamping, and anchoring solutions across building projects.

5. Steel Fabrication

Fabricators use all-thread bars for frames, brackets, supports, clamps, and custom assemblies.

6. Machinery Installation

Suitable strength classes can support machinery anchoring, equipment frames, bases, and mechanical assemblies.

7. Ceiling Suspension

Threaded bars provide adjustable hanging points for suitable ceiling systems and building services.

8. Plumbing Installations

Suitable rods support pipe clamps, brackets, channels, and other plumbing components.

9. Industrial Maintenance

Factories use MS threaded bars for repairs, brackets, machine supports, equipment frames, and general fastening.

10. Mechanical Services

Threaded rods provide versatile support across HVAC, plumbing, electrical, fire-services, and mechanical installations.

Key Features & Benefits of MS Threaded Rods

1. Continuous Thread

The long threaded surface provides a wide adjustment range for nuts and brackets.

2. Strong Mild Steel Construction

Mild steel provides useful mechanical strength for a wide range of fastening and support applications.

3. Multiple Diameters

Various rod sizes support light, medium, and heavy-duty installation requirements.

4. Multiple Lengths

Common 1 m, 2 m, and 3 m lengths provide flexibility across different projects.

5. Different Surface Finishes

Plain, zinc-plated, and galvanized options can suit different environmental conditions.

6. Easy to Cut

Suitable MS rods can be cut into shorter studs or fastening lengths according to project requirements.

7. Wide Accessory Compatibility

Thread bars work with compatible nuts, washers, coupling nuts, anchors, channels, brackets, and clamps.

8. Competitive Pricing & Reliable Stock

Sanvil Industries Ltd offers competitive wholesale and bulk pricing for contractors, factories, fabricators, and industrial customers.

MS Threaded Rods for HVAC Systems

Threaded rods are particularly common in HVAC support systems.

A typical duct suspension arrangement is:

Concrete/Steel Structure → Anchor → MS Threaded Rod → Channel/Bracket → Duct

This arrangement allows installers to adjust the height and level of the ductwork using nuts on the threaded bar.

Common associated products include:

• Duct clamps
• Unistrut channels
• Channel nuts
• Hex nuts
• Flat washers
• Anchors
• Brackets
• Duct flanges
• Duct corners
• D-clamps

The correct rod diameter and spacing depend on the actual supported load and system design.

MS Threaded Rods for Pipe Supports

A common suspended pipe arrangement is:

Structural Anchor → Threaded Rod → Pipe Clamp → Pipe

For larger support systems:

Anchor → Threaded Rod → Support Channel → Pipe Clamps → Pipes

This approach can support:

• Chilled-water pipes
• Plumbing pipes
• Fire-water lines
• HVAC pipework
• Drainage pipes
• Industrial process piping
• Mechanical services

The complete load includes the pipe, fluid, insulation, valves, fittings, clamps, and other accessories, not just the empty pipe.

Plain MS Threaded Rods

Plain mild steel rods have no substantial protective zinc coating.

They can suit:

• Indoor fabrication
• Machinery
• General mechanical work
• Dry environments
• Temporary installations
• Applications where another protective coating follows installation

Because mild steel can corrode when moisture and oxygen are present, environmental conditions should influence finish selection.

Zinc-Plated MS Threaded Rods

Zinc plating adds a protective zinc layer over the mild-steel surface.

These rods are common for:

• HVAC installations
• Indoor pipe supports
• Cable trays
• Mechanical services
• Building services
• General construction

The exact corrosion performance depends on coating type and thickness as well as environmental exposure.

Galvanized MS Threaded Rods

Galvanized threaded bars have a zinc coating that provides additional corrosion protection to the underlying steel.

They can suit more demanding environments where greater corrosion resistance is necessary.

However, galvanized steel is not equivalent to stainless steel. Highly corrosive, chemical, coastal, or specialized environments may call for a different material or protective system.

MS vs Stainless Steel Threaded Rods

MS Threaded Rod vs Bolt

Metric Thread Sizes and Pitch

A designation such as:

M10 × 1.5

means:

• M = Metric thread
• 10 = 10 mm nominal thread diameter
• 1.5 = 1.5 mm thread pitch

Some diameters have coarse and fine thread options.

Therefore, the rod, nut, and coupling nut must have compatible diameter and thread pitch.

Threaded Rod Accessories

Hex Nuts

Hex nuts secure brackets, channels, clamps, and other components at the necessary position.

Flat Washers

Washers help distribute the clamping force over a larger surface.

Coupling Nuts

Long coupling nuts connect compatible threaded rods when greater overall length is necessary.

Channel Nuts

Channel nuts connect rods and accessories to suitable support-channel systems.

Pipe Clamps

Pipe clamps work with rods to create adjustable pipe-support assemblies.

Structural Anchors

Suitable anchors connect the threaded rod to concrete or another supporting structure.

Technical Data Sheet (TDS)

How to Choose the Correct MS Threaded Rod

Confirm the Diameter

Determine the rod size from the installation design and expected load.

Select the Length

Choose a suitable rod length while allowing enough space for nuts, washers, brackets, clamps, and adjustment.

Choose the Finish

Select plain, zinc-plated, or galvanized construction according to environmental exposure.

Confirm the Thread Pitch

Ensure the nuts and couplers match both the rod diameter and thread pitch.

Check the Strength Class

Heavy-load and structural applications can call for a specific mechanical strength class.

Consider Corrosion

Indoor dry environments and outdoor or wet environments can require different protective finishes.

Select the Correct Anchor

The structural anchor must suit the base material and actual design load.

Check the Complete Load

For suspended systems, calculate the total weight of equipment, pipes, fluids, ducts, insulation, clamps, brackets, and accessories.

Why Choose Sanvil Industries Ltd

Multiple MS Rod Sizes

Our range can include M6, M8, M10, M12, M16, M20, M24, and other diameters.

Multiple Length Options

Common 1 m, 2 m, and 3 m options support different construction and industrial requirements.

Different Finishes

Plain, zinc-plated, and galvanized options can suit different environments.

Complete Support Accessories

Customers can source compatible nuts, washers, channels, clamps, brackets, and other fastening components.

Competitive Wholesale Pricing

We offer competitive prices for contractors, HVAC installers, factories, fabricators, institutions, and distributors.

Technical Selection Support

For faster quotation, provide the diameter, length, finish, strength class where applicable, and quantity.

Regional Distribution

We serve customers throughout Kenya, Uganda, Tanzania, and other East African markets.

Bulk Order Support

Sanvil Industries Ltd supports bulk requirements for mechanical contractors, HVAC companies, construction firms, fabricators, factories, institutions, and distributors.

Safety & Installation

Select MS threaded rods according to the actual load, diameter, steel grade, strength class, corrosion environment, anchor system, support spacing, and applicable engineering design.

Use nuts and washers with compatible thread diameter and pitch.

For overhead suspension, confirm the capacity of the complete support system, including the structural anchor.

Inspect rods for excessive corrosion, bending, thread damage, or other defects before installation.

Where vibration can occur, use an appropriate locking arrangement.

For structural, heavy machinery, overhead, seismic, or other safety-critical applications, follow the applicable engineering standards and project specifications.

Never determine safe load capacity from diameter alone.

FAQs

Q1. What does MS threaded rod mean?

A: MS means mild steel. The product is a long mild-steel bar with an external thread for fastening, suspension, and support work.

Q2. What sizes do you stock?

A: Our range can include M6, M8, M10, M12, M16, M20, M24, and other diameters according to stock.

Q3. What lengths can I get?

A: Common options include 1 m, 2 m, and 3 m, while other lengths can suit particular project requirements.

Q4. Can MS threaded rods support HVAC ducts?

A: Yes. Suitable rods work with anchors, channels, brackets, nuts, and washers to form HVAC duct support systems.

Q5. Can they support pipes?

A: Yes. Select the rod, anchor, clamp, and support spacing according to pipe size, fluid weight, insulation, fittings, and total load.

Q6. Do you have galvanized MS threaded rods?

A: Our range can include galvanized options for applications that need additional corrosion protection.

Q7. What is the difference between zinc and galvanized rods?

A: Both rely on zinc for corrosion protection, but coating processes and thickness can differ. Check the exact product specification for demanding environments.

Q8. Do you stock nuts and washers?

A: Yes. Compatible nuts, washers, channels, clamps, couplers, and fastening accessories can form part of the support system.

Q9. Can I buy MS threaded rods in bulk?

A: Yes. Sanvil Industries Ltd handles bulk orders for contractors, HVAC installers, factories, fabricators, institutions, and distributors.

Q10. Which countries can Sanvil Industries Ltd deliver MS threaded rods to?

A: We serve customers across Kenya, Uganda, Tanzania, and other East African markets.
